California USA Indoor P2.5 Flexible LED Display Project

California USA Indoor P2.5 Flexible LED Display Project

TOOSENLED recently completed an indoor P2.5 flexible LED display project in California, USA. The LED screen was installed inside an entertainment venue, where the display needed to remain highly visible without taking up valuable floor space.

Instead of using a traditional flat LED wall, the project adopted a suspended circular flexible LED display. The curved screen surrounds the viewing area and allows advertising, promotional graphics, animations, and venue information to be seen from different directions.

This installation shows how a flexible LED display can become part of the interior space rather than simply being mounted against a wall.

Project Information

Why a Flexible LED Display Was Used

One of the main requirements of this project was the circular screen structure.

A standard rigid LED cabinet is designed mainly for flat installations. When the display needs to form a continuous curve, a flexible LED display gives the installer much more freedom to match the required radius.

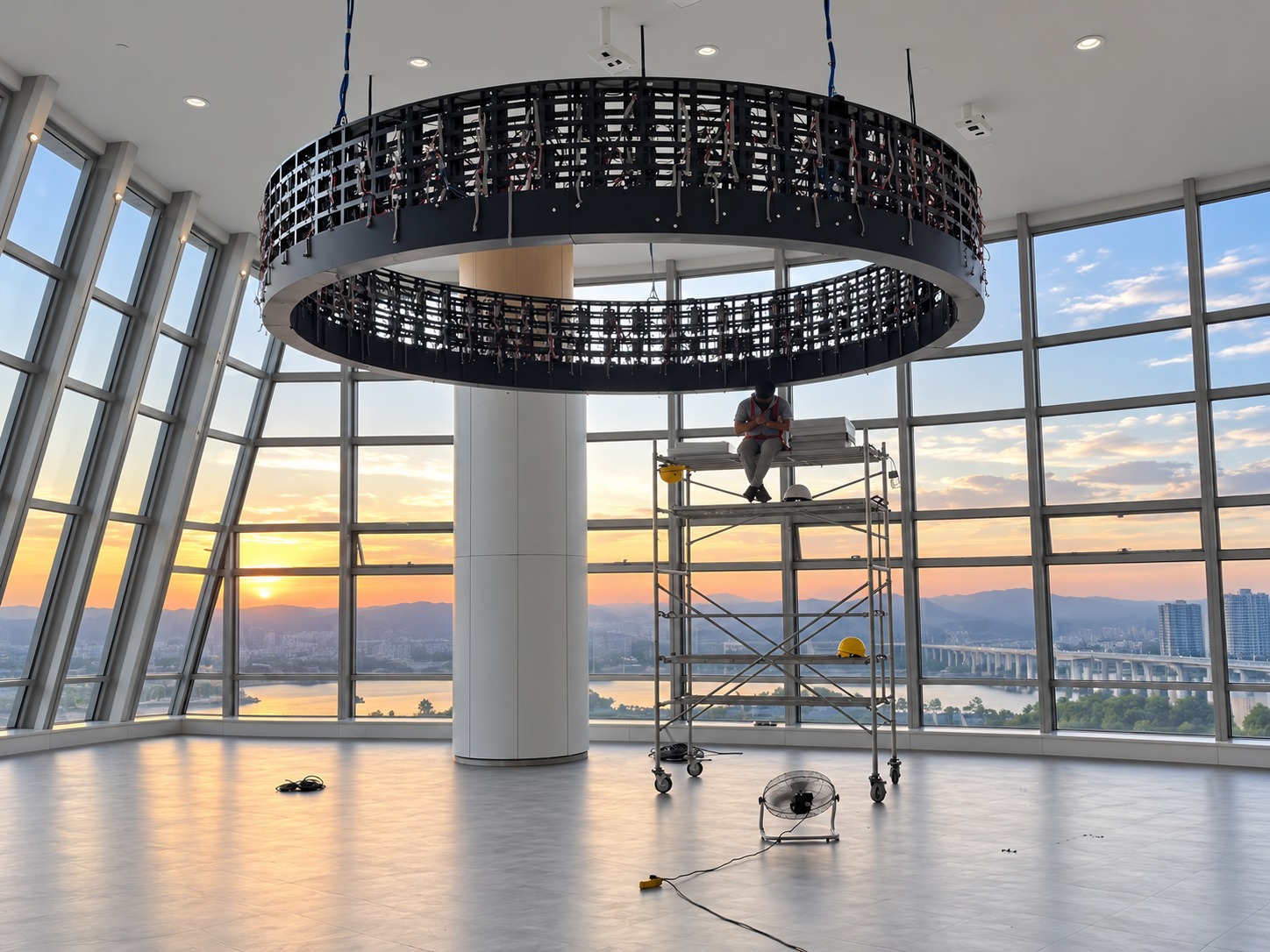

For this California project, the flexible LED modules were installed around a custom circular supporting frame. This made it possible to create a smooth ring-shaped display while keeping the overall structure relatively compact.

The suspended design also uses the ceiling area effectively. Customers can still move freely below the screen, while the LED content remains visible from different positions inside the venue.

P2.5 Pixel Pitch for Indoor Viewing

The project uses a P2.5 pixel pitch, which provides a good balance between image detail and project cost for an indoor commercial environment.

Because viewers may see the display from relatively short distances, the screen needs enough pixel density to present text, logos, promotional graphics, and animated content clearly.

At the same time, P2.5 avoids using an unnecessarily small pixel pitch where the viewing distance and application do not require it.

Smooth Curved Screen Structure

For a circular LED display, image quality depends not only on the LED modules but also on the supporting structure.

If the frame radius is inconsistent, the modules can form visible waves or gaps after installation.

For this reason, the supporting frame needs to be manufactured according to the designed diameter and checked before final installation. The flexible LED modules are then mounted around the structure so that the display surface follows a continuous curve.

This helps create a cleaner appearance when the screen is viewed from the floor.

High Refresh Rate for Dynamic Content

The display has a refresh rate of ≥7680Hz.

A high refresh rate is useful in entertainment and commercial environments where the screen frequently plays fast-moving graphics, video advertisements, and animated visual effects.

It can also help reduce visible scan lines or flicker when visitors take photos or videos of the LED display using smartphones and cameras.

This is especially important for entertainment venues, where customers often record and share the environment on social media.

Power Configuration

The electrical configuration for this indoor P2.5 flexible LED display includes:

• Input voltage: 90–264V
• Output voltage: DC 5V

The wide input voltage range makes the power system suitable for different electrical environments, while the DC 5V output supplies stable operating power to the LED modules and related components.

For a suspended installation, power supplies, receiving cards, signal cables, and power cables should also be arranged carefully inside or around the supporting structure so that maintenance remains accessible.

Factory Testing Before Shipment

Before shipment, flexible LED displays should be assembled and tested according to the actual project structure whenever possible.

For a circular installation, testing is particularly important because a screen that works correctly while flat may still show alignment or connection problems after it is installed on a curved frame.

The main inspection points include module alignment, color consistency, signal transmission, power connections, playback stability, and long-duration aging tests.

Factory testing can reduce installation adjustments after the display arrives at the project site.

Flexible LED Displays for Creative Indoor Projects

Flexible LED technology is suitable for more than circular screens.

It can also be used for curved walls, columns, wave-shaped displays, cylindrical structures, exhibition installations, retail interiors, entertainment venues, and other custom-shaped LED projects.

The final structure depends on the required radius, screen dimensions, viewing distance, installation environment, and maintenance method.

About TOOSENLED

TOOSENLED provides indoor and outdoor LED display solutions for commercial and creative projects worldwide.

For projects such as this California indoor P2.5 flexible LED display, our team can support flexible LED module selection, structural design, control system configuration, factory testing, packaging, and installation guidance.

If you are planning a curved, circular, cylindrical, or other custom-shaped LED display, you can provide the required size, installation environment, viewing distance, shape, and project drawings so that the screen structure and pixel pitch can be matched to the actual application.
